Punched and Slotted Angle
STRUTS WE MANUFACTURE
| Type | Size | Gauges Available | Hole Pattern |
|---|---|---|---|
| Offset Angle | 1-1/2” x 2-1/2” | 14, 13, 12 GA | 3/8" holes, 1” on center standard spacing |
| Offset Angle | 1-5/8” x 2-3/8” | 14, 13, 12 GA | 3/8" holes, 1” on center standard spacing |
| Offset Angle | 1” x 1-1/2” | 16, 14, 13, GA | 3/8" holes, 1” on center standard spacing |
| Punched Angle | 1-1/4" x 1-1/4" | 16, 14, 13, 12 GA | 3/8" holes, 1” on center standard spacing |
| Punched Angle | 1-1/2" x 1-1/2" | 14, 13, 12 GA | 3/8" holes, 1” on center standard spacing |
| Punched Angle | 2" x 2" | 14, 13, 12 GA | 3/8" holes, 1” on center standard spacing |
| Slotted Angle | 1-1/4" x 1-1/4" | 16, 14, 13, 12 GA | 3/8" hole with slot for adjustment |
| Slotted Angle | 1-1/2" x 1-1/2" | 14, 13, 12 GA | 3/8" hole with slot for adjustment |
| Special Order | 1-1/4" angle | Contact for availability | 5/16" holes |
WHY DISTRIBUTORS & MANUFACTURERS CHOOSE MINNESOTA METALS
- Manufactured to spec — multiple gauges and sizes produced to order, not limited to a single stock configuration
- Cut to length — no secondary processing needed on your end
- Special-order hole sizing available — 5/16" hole option for jobs standard 3/8" spacing doesn't fit
- Rush orders available — for time-sensitive distributor and manufacturer needs
- Wholesale/B2B only — built around distributor, manufacturer, and franchise volume
FAQ
Punched angle has holes at a fixed, standard spacing. Slotted angle adds a slot between each hole, giving installers finer adjustment when the mounting position doesn't line up exactly with standard hole spacing.
Minnesota Metals manufactures punched and slotted angle in 16, 14, 13, and 12 gauge steel, depending on size.
Yes. In addition to the standard 3/8" hole pattern, Minnesota Metals offers a special-order 1-1/4" angle with 5/16" holes.
Yes. Angle is manufactured and cut to the length specified by the distributor or manufacturer.
No. Minnesota Metals sells only to distributors, manufacturers, and retail markets — not direct to consumers or individual contractors.
AT A GLANCE
PRODUCT
Punched angle and slotted angle, steel, used to mount garage door track/openers to overhead
structure
Punched Angle
3/8" holes as standard

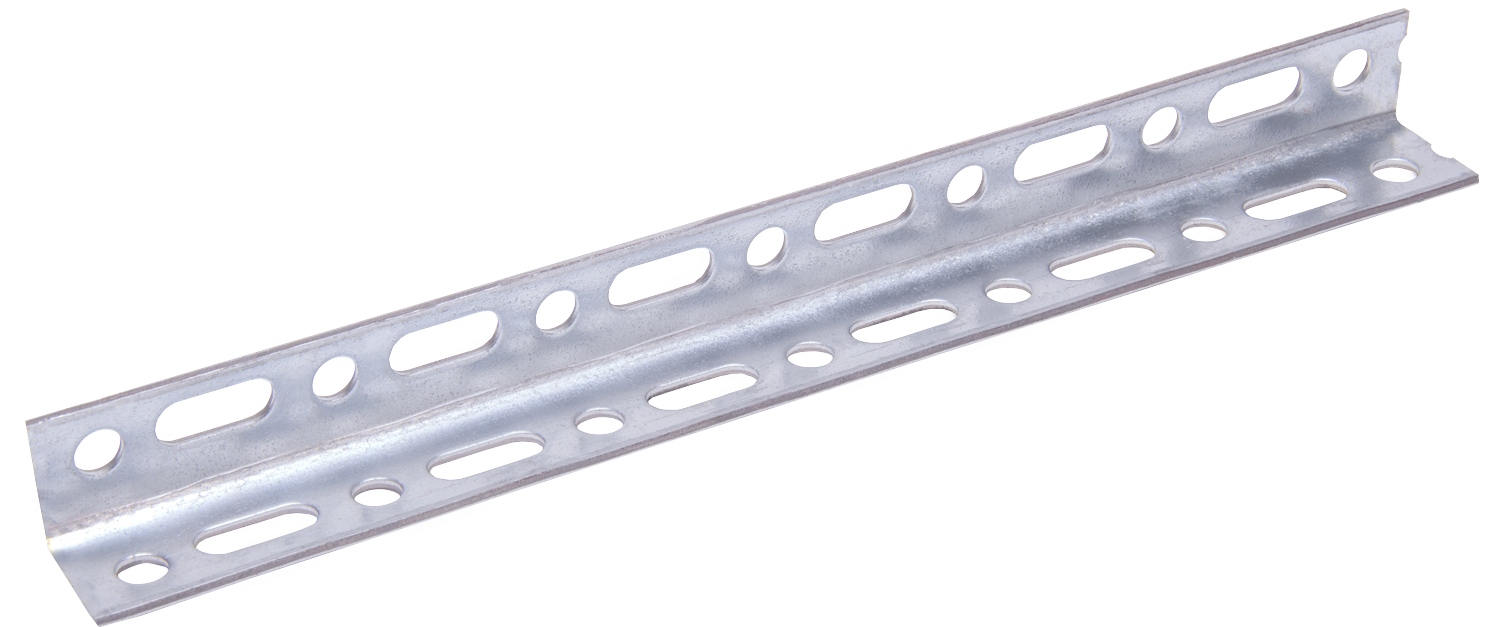

Slotted Angle
3/8" holes with a slot between them for finer hanging adjustment
Special Order
1-1/4" angle available with 5/16" holes
Sizes & Guages
Please refer to spec table
WHO WE SELL TO
Distributors, manufacturers, and retail markets only — not sold direct to consumers
LOCATION
Manufactured in Spring Valley, Minnesota; ships nationwide
Minnesota Metals sells exclusively to:
- Garage door wholesalers and distributors
- Garage door manufacturers
- Retail markets and franchises
