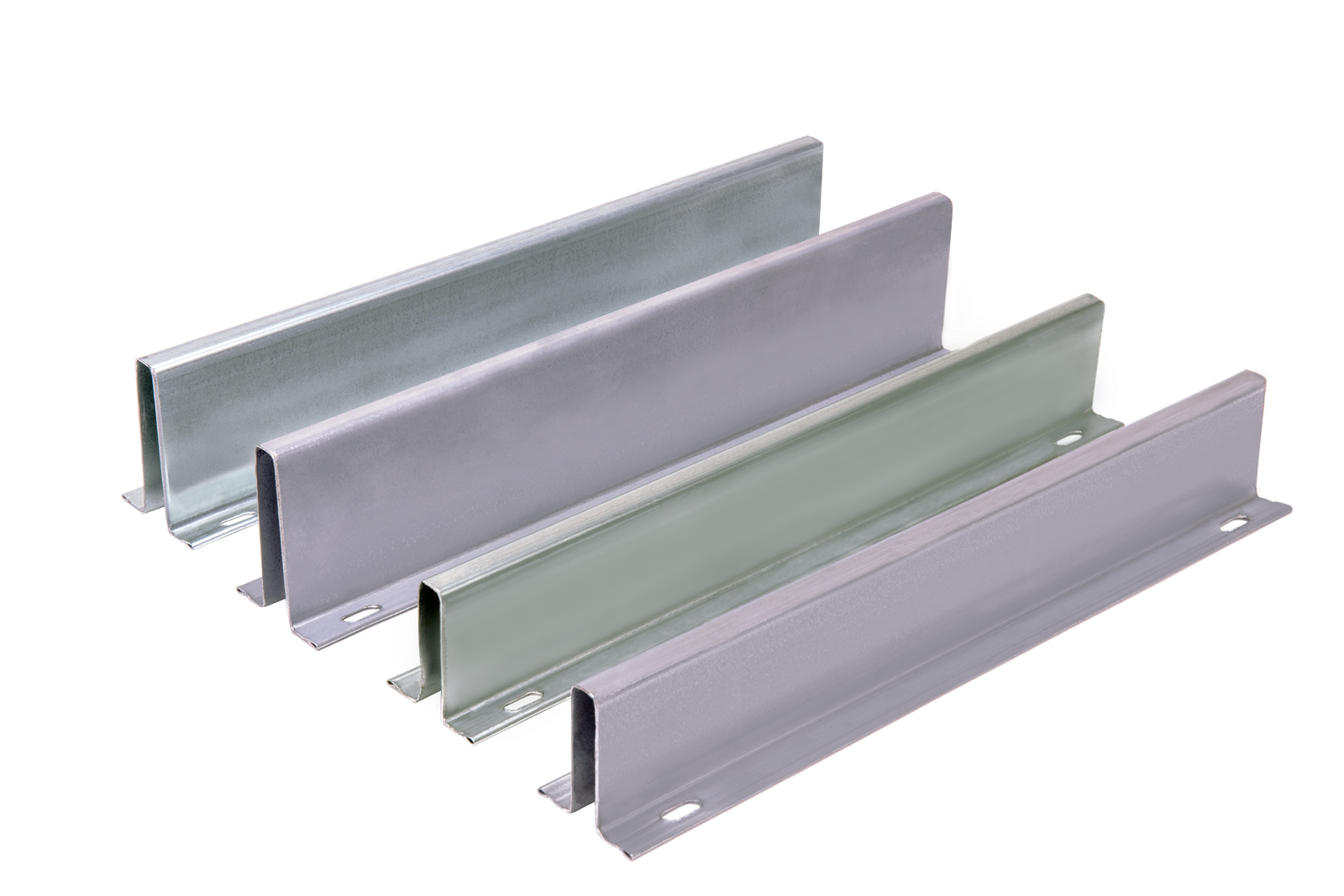

The struts are used for re-enforcing the garage door. A strut should always be put on the top section of each door when an opener is attached, or the warranty may be void. The 20-gauge struts are used in obtaining the wind codes for certain areas.

• 2-1/4” hemmed 22ga and 20ga
• 3” hemmed 20ga



Punched & Slotted Angle

The punched angle is made with 3/8" holes, as standard. The slotted angle is 3/8" hole with a slot in between holes, for finer hanging possibilities. Special orders are available for 1-1/4" angle with 5/16" holes.

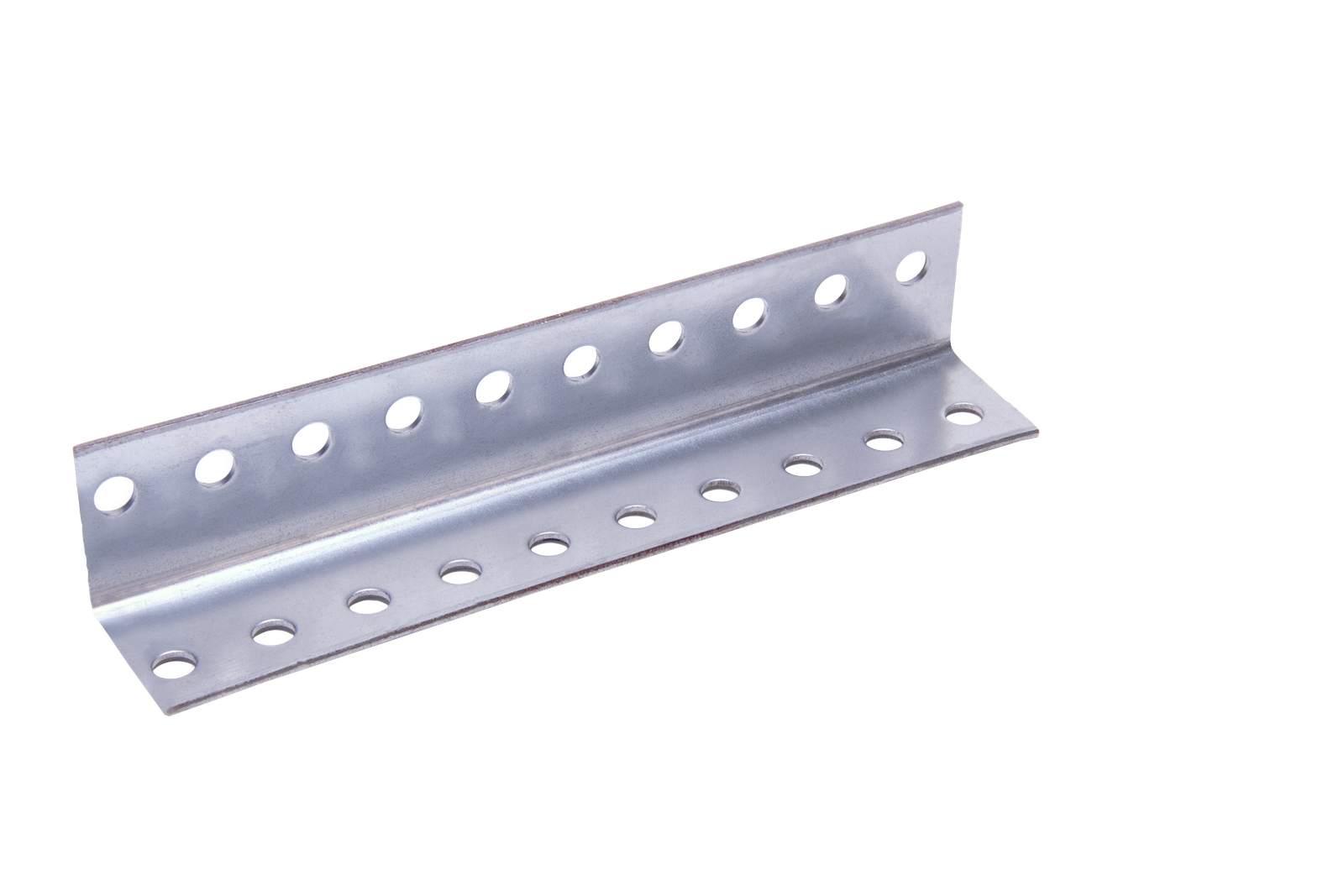

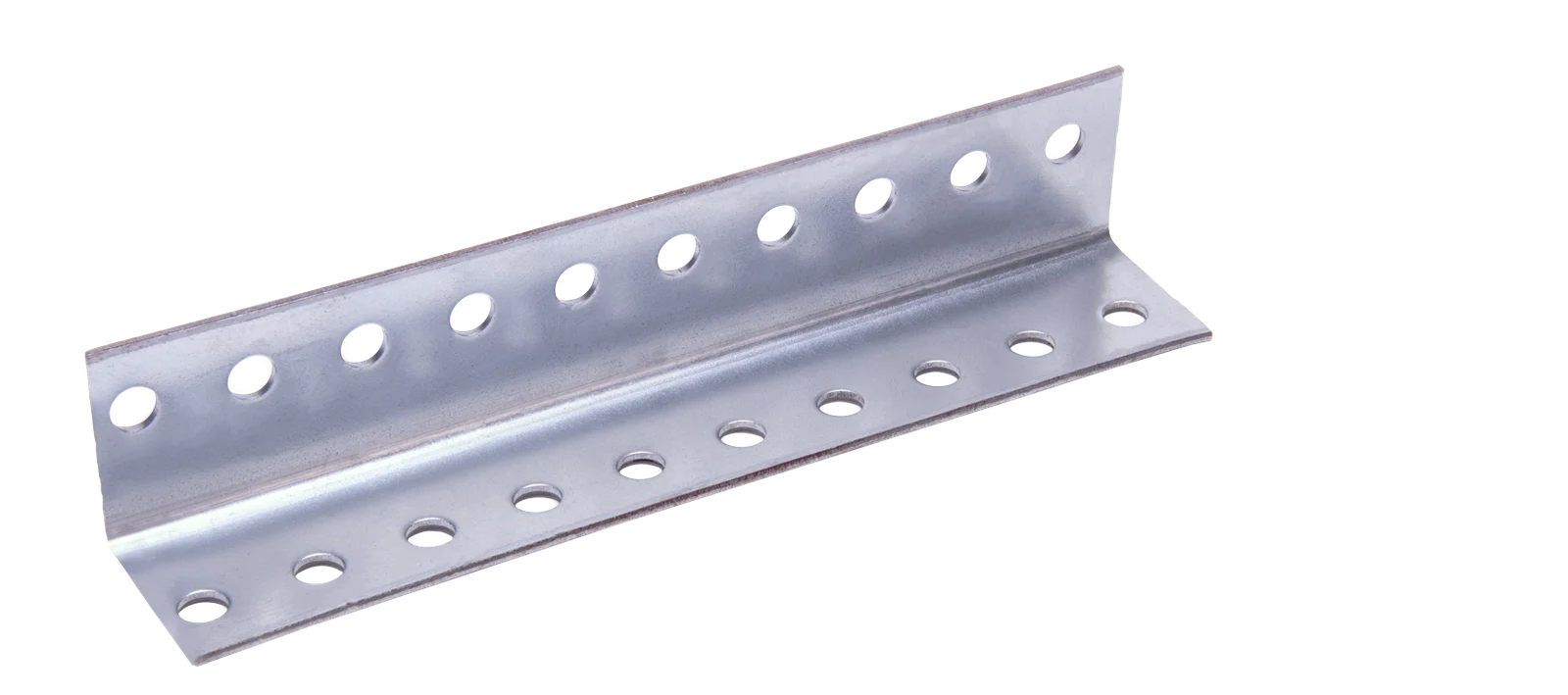

Punched Angle

• 1-1/4” x 1-1/4” 16ga, 14ga, 13ga, and 12ga
• 1-1/2” x 1-1/2” 14ga, 13ga, and 12ga
• 2” x 2” 14ga, 13ga, and 12ga

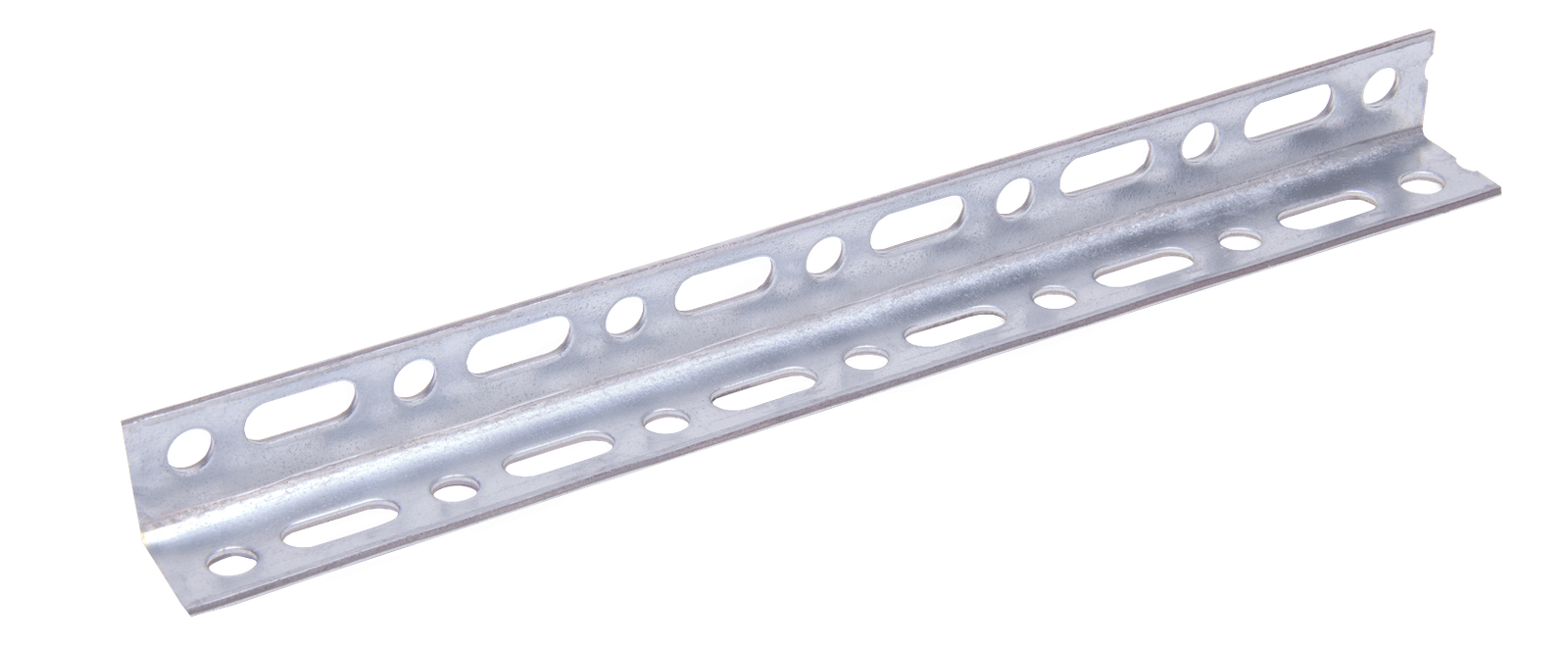

Slotted Angle

• 1-1/4” x 1-1/4” 16ga, 14ga, 13ga, and 12ga
• 1-1/2” x 1-1/2” 14ga, 13ga, and 12ga

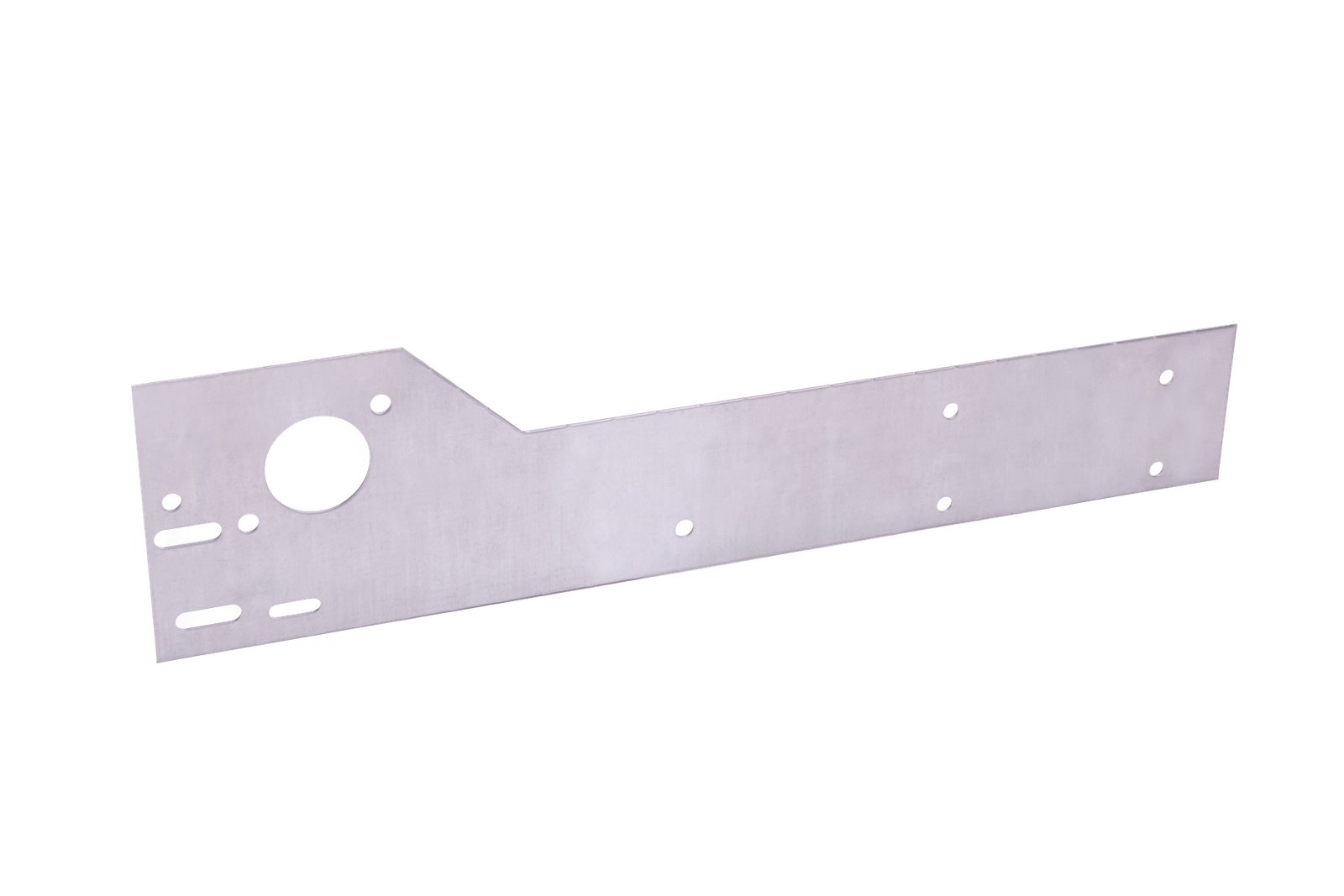

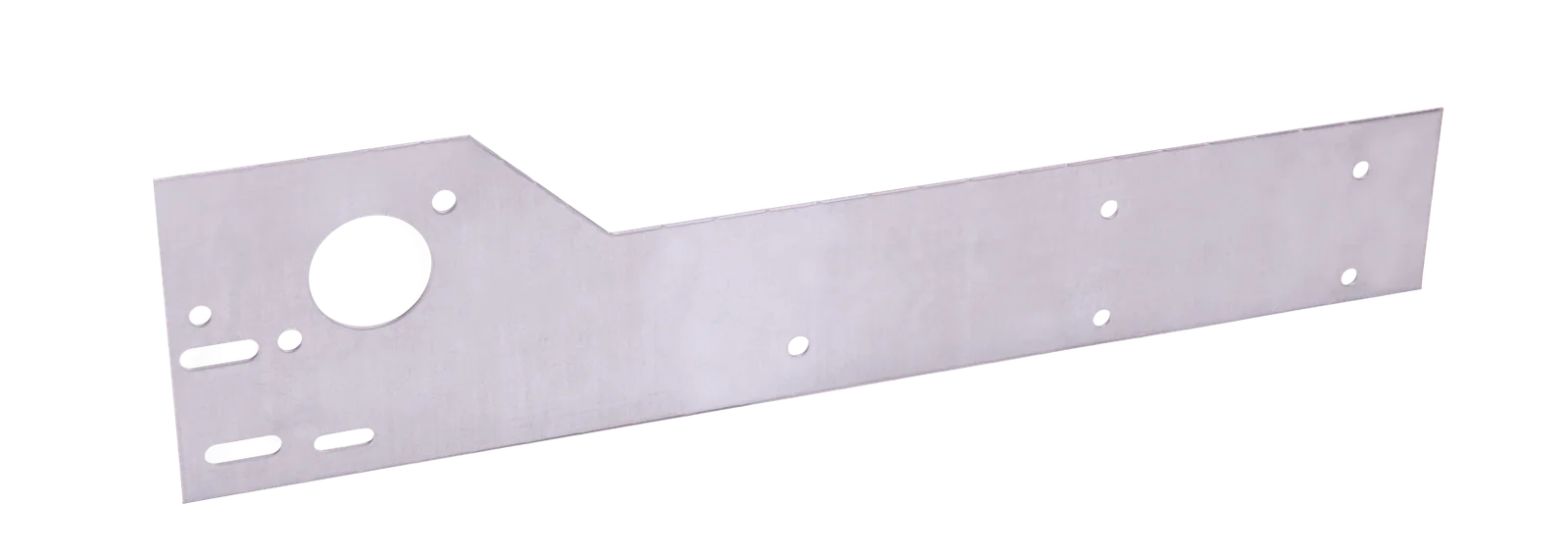

Low Headroom Brackets

The low headroom bracket is used in the field to make current track low headroom without having to order special tracks. They require low headroom dubs track.

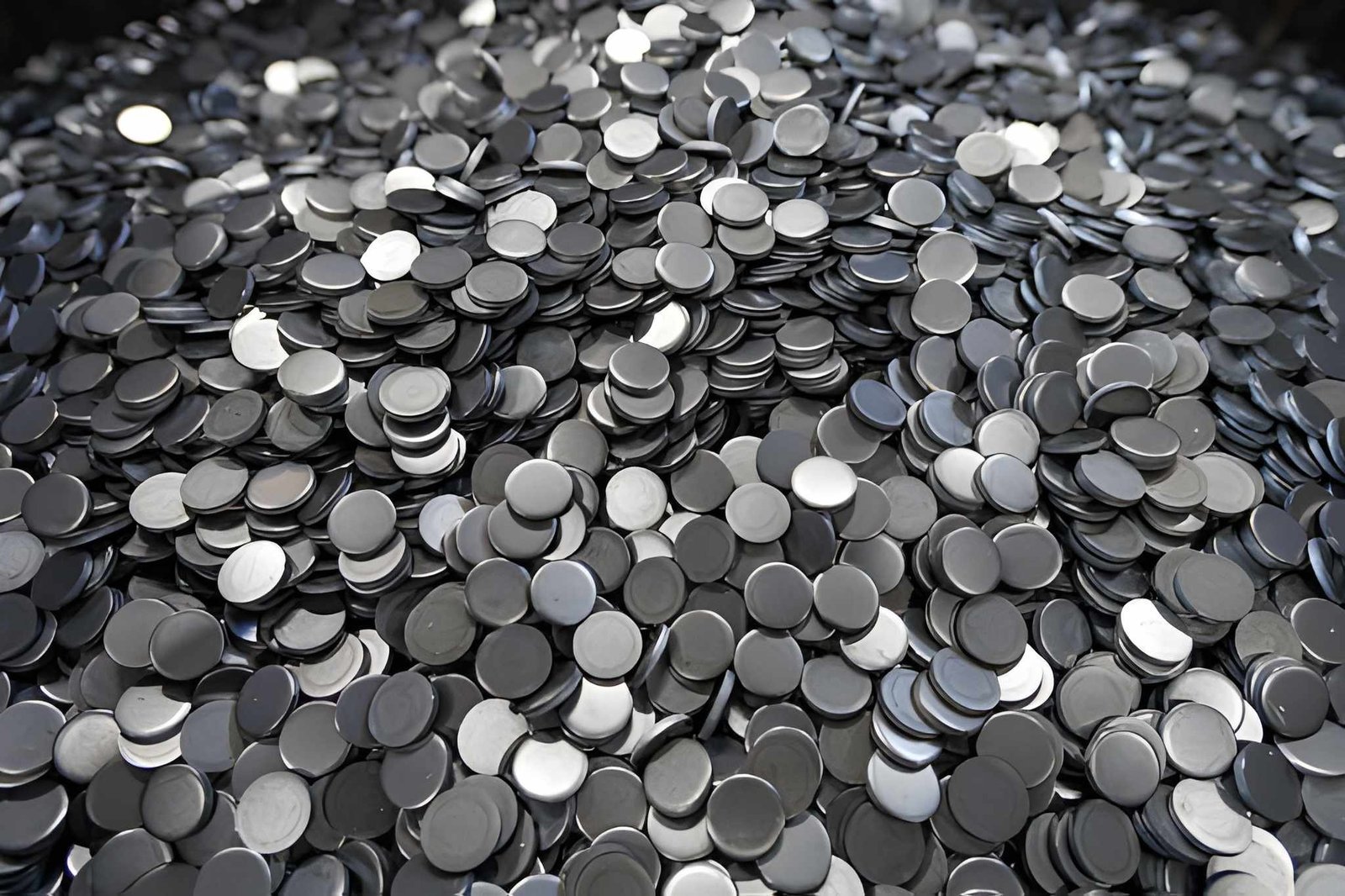

The slugs and punch outs are the same product. They are used in filling the drums to counterbalance doors with no springs.
